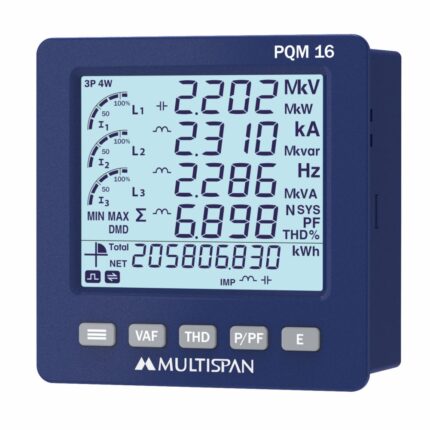

Multifunction Meter-LCD Display

SKU: PQM-16

Pick up from the ir4electricals Store

To pick up today

Courier delivery

Our courier will deliver to the specified address - within colombo and gampaha district

2-3 Days

රු22,200.00

23 in stock

Description

PARAMETER SPECIFICATION
Input Signal	3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
CT Primary	Upto 9999A (Programmable)
CT Secondary	5 Amp/1 Amp selectable
PT Primary	100V to 520kV (Programmable)
PT Secondary	100V to 520V (L-L) (Programmable)
True PF Avg. & Per Phase	-1.000 to 1.000
Displacement PF	-1.000 to 1.000
Frequency (Hz)	45.00 – 60.00 Hz
Load hours	9999.59 Hrs/Min.
No load hours	9999.59 Hrs/Min.
On Hour	9999 Hour
RPM	3600 RPM @ 60 Hz & 2-Pole
THD Upto 32 level
POWER
KW Total	0.000 – 9999 MW
kW Per Phase	0.000 – 9999 MW
kVA Total	0.000 – 9999 MVA
kVA Per Phase	0.000 – 9999 MVA
kVAr Total	0.000 – 9999 MVAr
kVAr Per Phase	0.000 – 9999 MVAr
ENERGY
Import kWh	000.000 – 999999999 MWh
Export kWh	000.000 – 999999999 MWh
Net kWh	000.000 – 999999999 MWh
Total kWh	000.000 – 999999999 MWh
kVAh Total	000.000 – 999999999 MVAh
Import kVArh	000.000 – 999999999 MVArh
Export kVArh	000.000 – 999999999 MVArh
Lag kVArh	000.000 – 999999999 MVArh
Lead kVArh	000.000 – 999999999 MVArh
Total kVArh	000.000 – 999999999 MVArh
DISPLAY & KEY
Display Upper	4 Digit, 4 Line 7 Seg 0.37”,LCD
Lower	9 Digit, 1 Line 7 Seg 0.26”,LCD
Key	PROGRAM, VAF, THD%, POWER/PF, ENERGY
DIMENSION
Size (mm)	98 (H) x 98 (W) x 46 (D)
Panel Cutout (mm)	92 (H) x 92 (W)
AUXILIARY SUPPLY
Supply voltage	100 to 300V AC/DC, 50/60Hz
Power consumption (VA RATING)	Approx 3 VA @ 230V AC
ACCURACY	Class 0.5 (Standard) Class 0.5s , Class 0.2s (Optional as per request)
COMMUNICATION
RS-485 MODBUS
ENVIRONMENT CONDITION
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH (non-condensing)
Protection Level (AS Per Request)	IP-65 (Front side) As per IS/IEC 60529 : 2001
