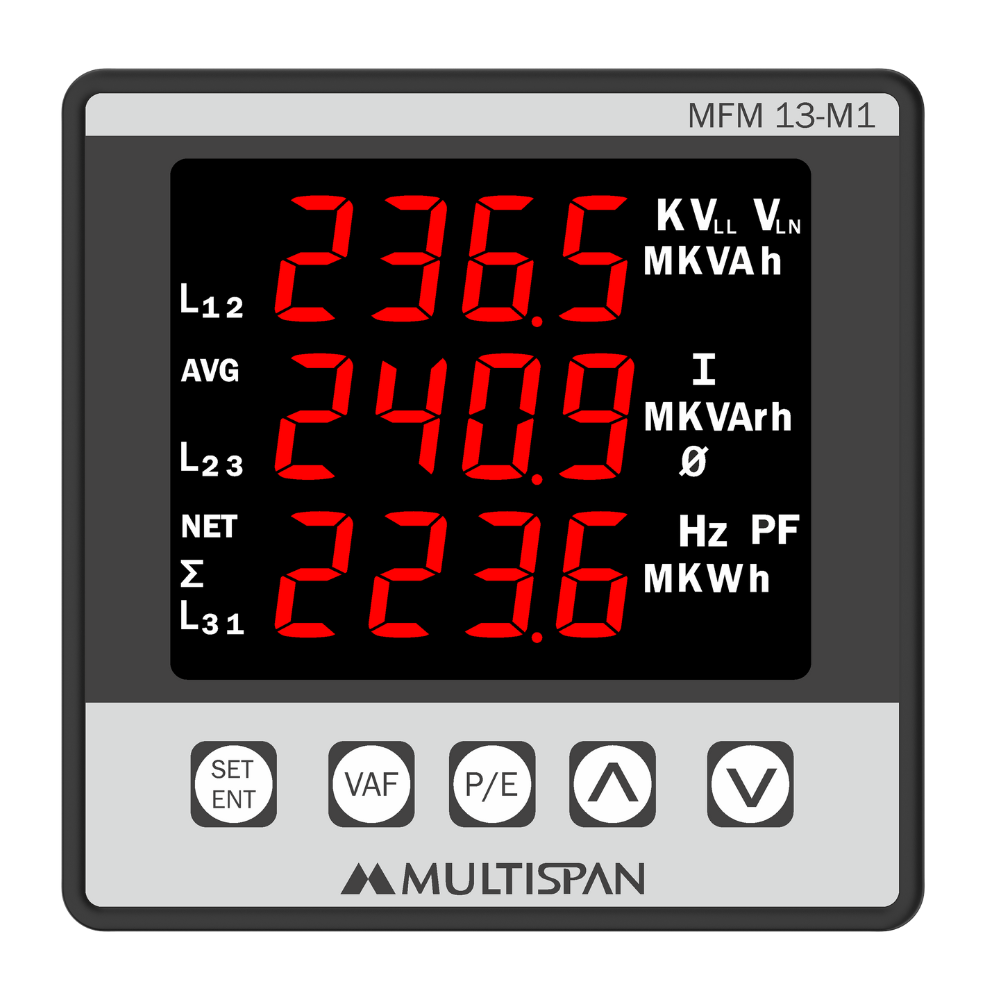

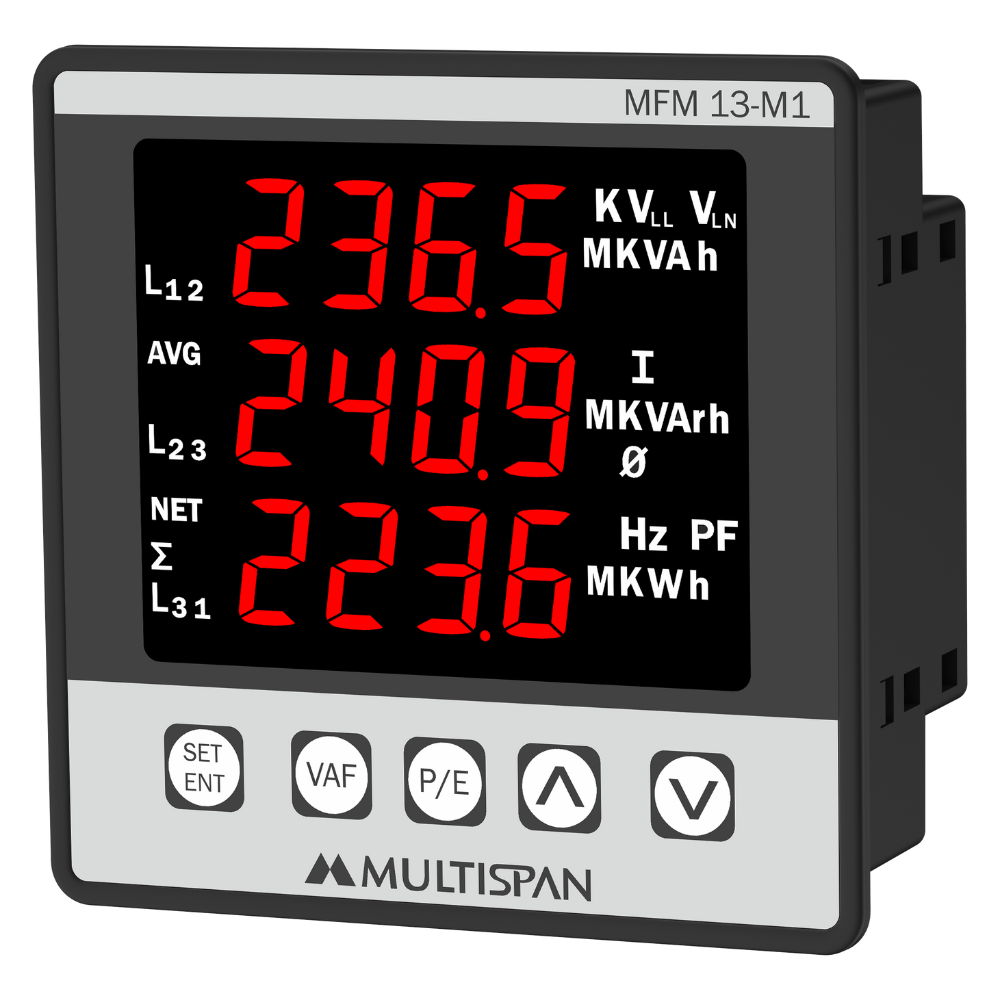

Multifunction Meter – 3 Line Display
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු13,900.00
9 in stock
9 in stock
Description
| PARAMETER SPECIFICATION | |
| Input Signal | 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire |
| CT Primary | Upto 6000A (Programmable) |
| CT Secondary | 5 Amp/1 Amp selectable |
| PT Primary | 100V to 520kV (Programmable) |
| PT Secondary | 100V to 520V (L-L) (Programmable) |
| PF Avg. & Per Phase | 0.100 – 1.000 |
| Frequency (Hz) | 45.00 – 60.00 Hz |
| Load hours | 9999.59 Hrs/Min. |
| No load hours | 9999.59 Hrs/Min. |
| RPM | 3600 RPM @ 60 Hz & 2-Pole |
| POWER | |
| KW Total | 0.000 – 9999 MW |
| kW Per Phase | 0.000 – 9999 MW |
| kVA Total | 0.000 – 9999 MVA |
| kVA Per Phase | 0.000 – 9999 MVA |
| kVAr Total | 0.000 – 9999 MVAr |
| kVAr Per Phase | 0.000 – 9999 MVAr |
| ENERGY | |
| kWH Total | 000.000 – 999999999.999 kWh |
| kVAh Total | 000.000 – 999999999.999 kVAh |
| kVArh Total | 000.000 – 999999999.999 kVArh |
| DISPLAY & KEY | |
| Display | 4-Digit, 3-Line 0.57″ RED |
| Key | SET/ENT,VAF,P/E, INC, DEC |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 54 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC/DC, 50/60Hz |
| Power consumption (VA RATING) | Approx 4 VA @ 230V AC MAX |
| ACCURACY | Class 0.5 (Standard) |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH
(non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529: 2001 |
Specification
Overview
| Weight | 1 kg |
|---|
