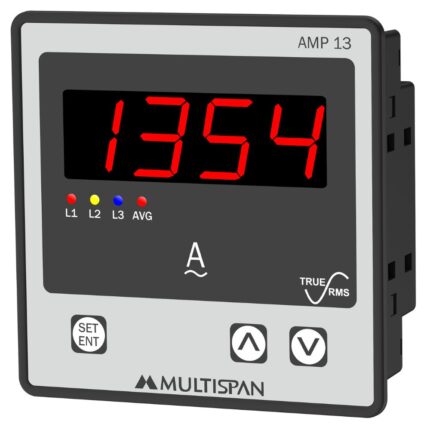

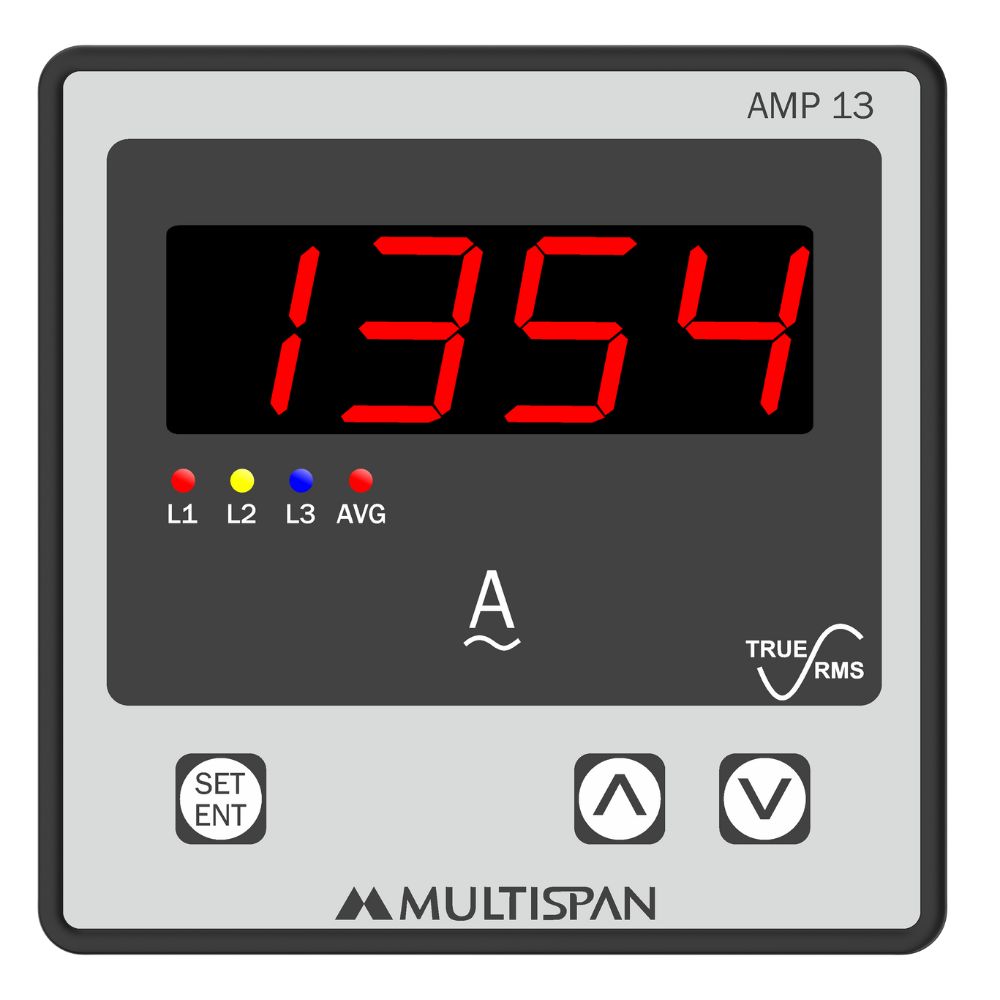

Ampere Meter LED 4 Digit, CT
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු5,500.00
5 in stock
5 in stock
Description
| INPUT | |
| Direct Current AC | 0.1 Amp to 5 Amp AC |
| Primary CT | 9999 Amp (Selectable) |
| Secondary CT | 5 or 1 Amp (Selectable) |
| Accuracy | Class 0.5 |
| DISPLAY, KEY & LED | |
| Display | 4-Digit, 1-Line, 7-Seg, 0.8” RED LED |
| Key | SET/ENT, INC, DEC |
| LED Indication | L1, L2, L3, Avg |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| ACCURACY | |
| Class 0.5 (Standard) | |
| AUXILIARY POWER SUPPLY | |
| Power Supply | 100-270V AC/DC 50/60HZ 4VA |
| Power Consumption (VA RATING) | 4 VA MAX |
| ENVIRONMENTAL CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level ( As per Request ) | IP-65 (Front side As per IS/IEC 60529 : 2001) |
Specification
Overview
| Weight | 1 kg |
|---|
