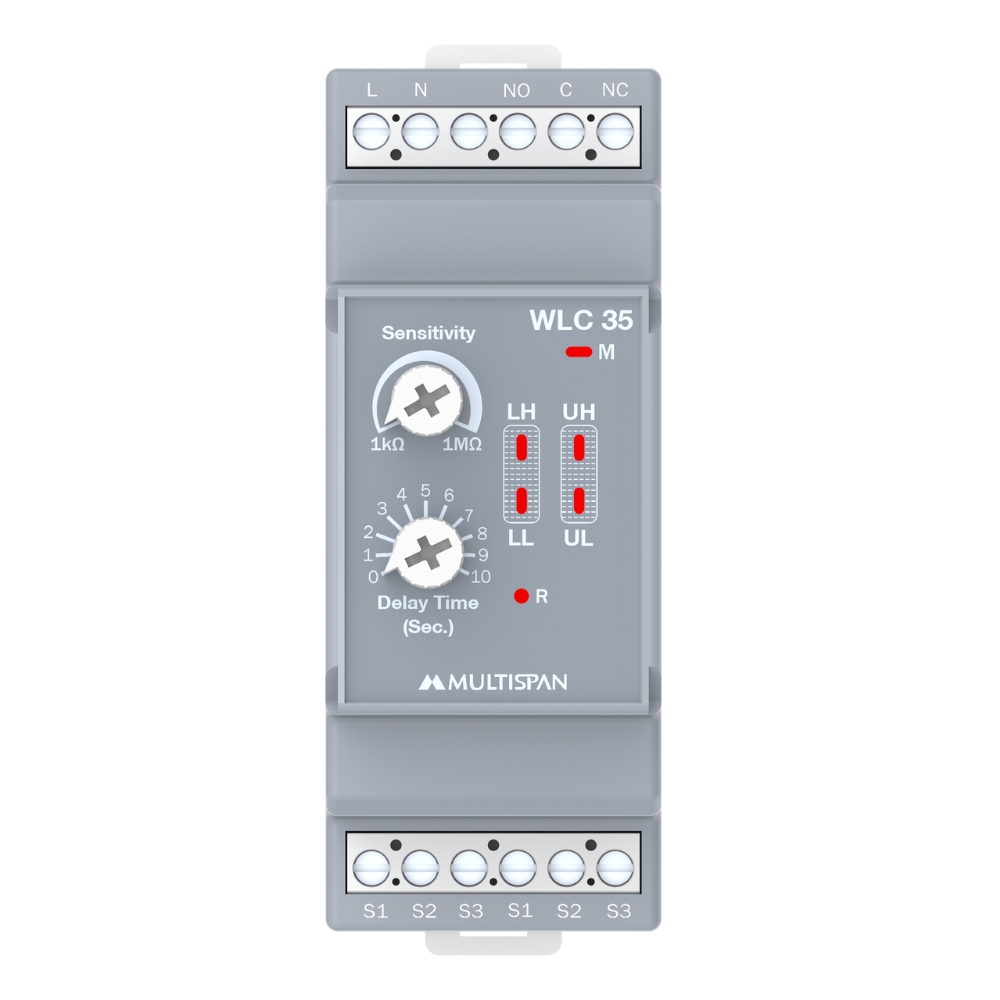

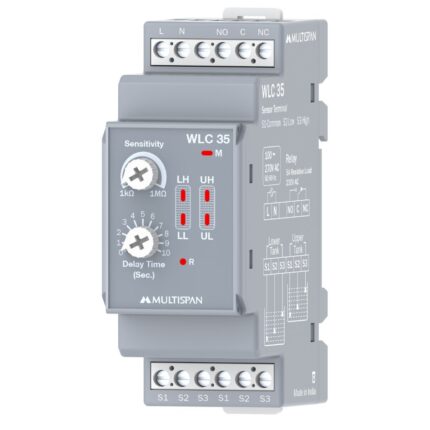

WLC-35 Water Level Controller
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු6,200.00
6 in stock
6 in stock
Description
| Model | WLC 35 |
| Mounting | Din Rail Mounting |
| Input Sensor | 6 nos. prods |
| S1: Common S1: Common (Upper) S2: Low S2: Low (Upper) S3: High S3: High (Upper) |
|
| Indications | LED 1: Relay LED 2: High Level (Lower) LED 3: Low Level (Lower) LED 4: Mains LED 5: High Level (Upper) LED 6: Low Level (Upper) |
| Power Supply | 100 270V AC, 50/60 Hz, 3VA |
| Output Rating | 5Amp, 230V AC (Resistive) |
| Dimension | 90 x 35 x 62.5 mm |
| Output | 1 Relay, 1 C/O (NO-C-NC) |
| Sensitivity | 1 to 1Mega ohms |
| Reset | Auto |
| Trip Delay | 0 to 10 sec (Selectable) |
Specification
Overview
| Weight | 1 kg |
|---|
Reviews
There are no reviews yet.
