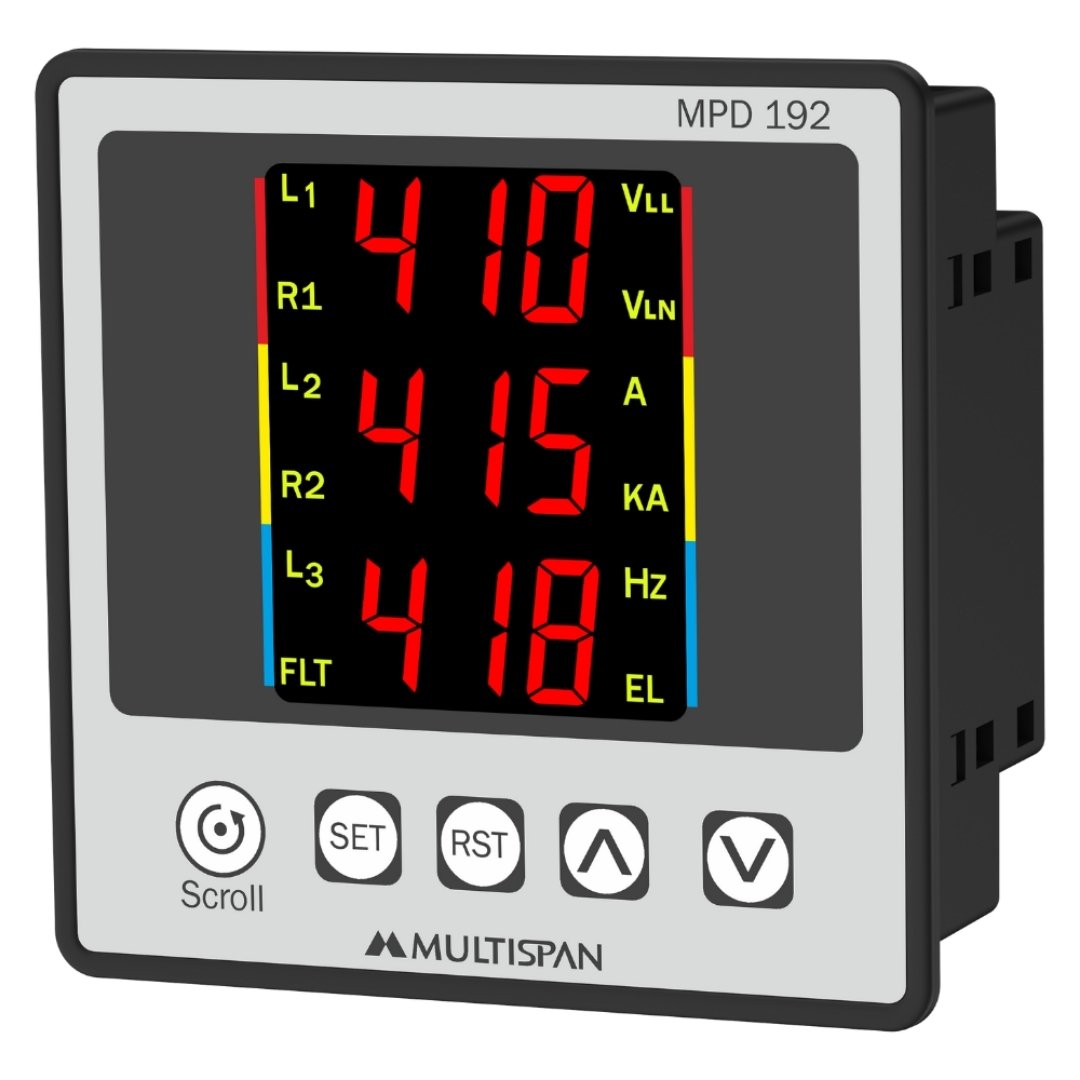

Motor Protection Relay, CT Selectable
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු13,900.00
Description
| INPUT: | |
| Voltage AC | |
| Direct Voltage AC | 30 to 300V(L – N) 50 to 520V(L – L) |
| Burden | < 0.2VA |
| Current AC | |
| Primary CT Ratio | 5 to 6000 Amp selectable |
| Secondary Current AC | 0.1 to 5 Amp |
| Burden | < 0.2VA |
| Overload | Up to 6A continuous |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY AND KEYS: | |

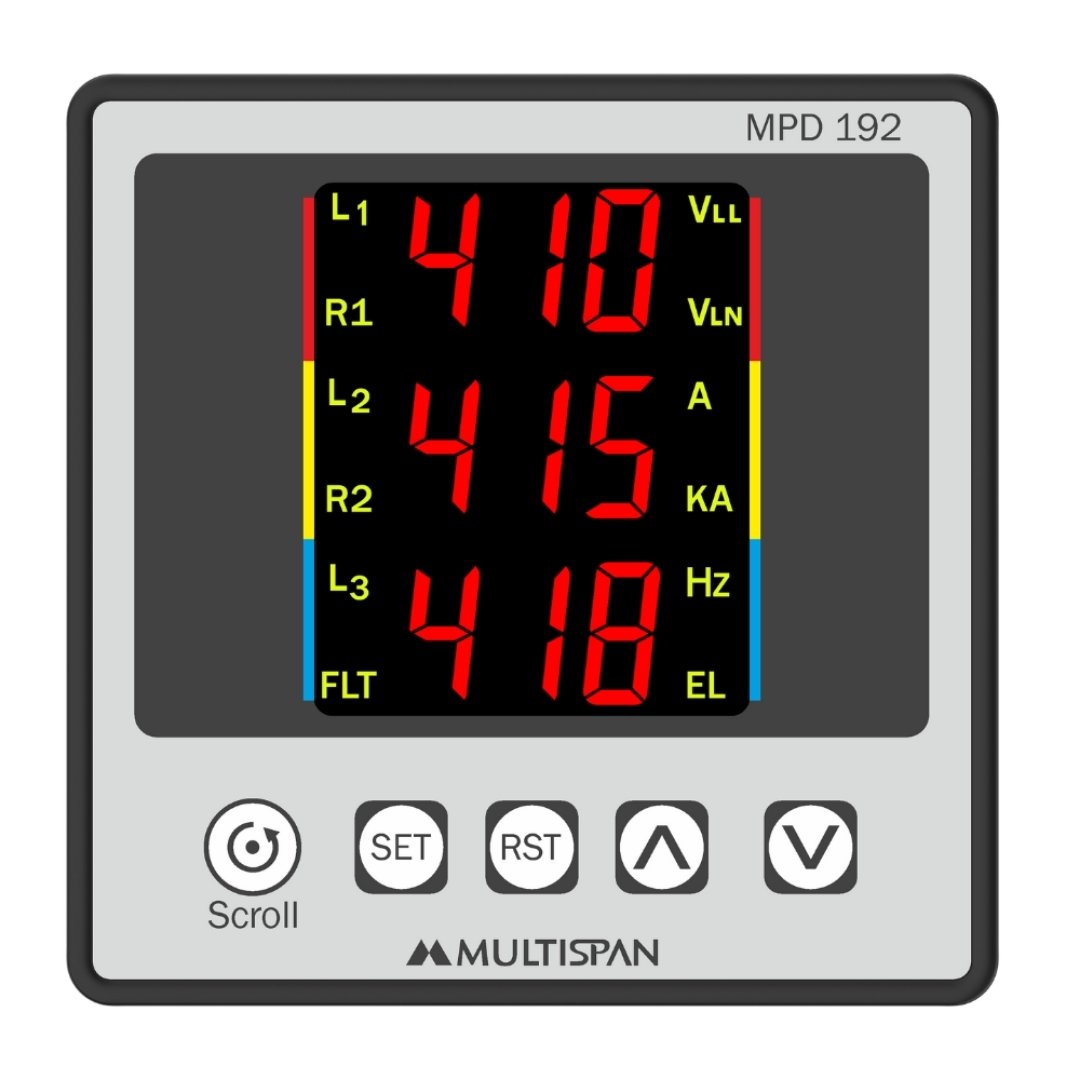

| Display | 3 Digit, 3 Line 7 Seg 0.56”, RED LED |
| Keys | Scroll, SET, RST, INC, DEC |
| DIMENSION: | |
| Size (mm) | 96 (H) X 96 (W) X 54 (D) mm |
| Panel Cutout (mm) | 92 (H) X 92 (W) mm |
| Network Selection | 3 Phase – 4 Wire,3 Phase – 3 Wire |
| TRIP SETTING: | |
| Under Current | 0.00 to CTR |
| Over Current | 0.00 to CTR |
| Under Voltage | 50 to 520V For 3Ø – 3W 30 to 300V For 3Ø – 4W |
| Over Voltage | 50 to 550V For 3Ø – 3W 30 to 330V For 3Ø – 4W |
| Over / Under Frequency | 45.0 to 65.0 Hz |
| Short Circut | 1 – 9 Scale |
| Lock Rotor Point | 0.5 to 9.0 Scale |
| Unbalance | 5 – 60% |
| TIME PARAMETER: | |
| Power On Delay | 0 to 99 Sec |
| Initial Time Delay | 0 to 99 Sec |
| Trip Delay Time(Voltage, Current, Frequency, SSP, Unbalance) | 0 to 999 Sec |
| Scrolling Time | 1 to 99 Sec |
| Reset Time | 0 to 99 Sec |
| OUTPUT SPECIFICATION: | |
| Relay | 2 Nos |
| Relay Type | 1st Relay ( NO – C – NC ) 2nd Relay ( NO – C ) |
| Rating | 1st Relay 10Amp, 230V AC (Resistive Load) 2nd Relay 5 Amp (With Simultaneous Actuation) |
| AUXILIARY SUPPLY: | |
| Supply Voltage | 100 to 270V AC/DC, 50/60Hz |
| Power Consumption | 3VA @ 230 AC MAX |
| ENVIRONMENTAL CONDITION: | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH Non-Condensing |
| Protection Level (As Per request) | IP-65 (Front side As per IS/IEC 60529 : 2001) |
| INPUT: | |
| Voltage AC | |
| Direct Voltage AC | 30 to 300V(L – N) 50 to 520V(L – L) |
| Burden | < 0.2VA |
| Current AC | |
| Primary CT Ratio | 5 to 6000 Amp selectable |
| Secondary Current AC | 0.5 to 5 Amp |
| Burden | < 0.2VA |
| Overload | Up to 6A continuous |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY AND KEYS : | |
| Display | 3 Digit, 3 Line 7 Seg 0.28”, RED LED |
| Keys | SET, INC, DEC, RST |
| DIMENSION : | |
| Size (mm) | 75(H)X 55(W)X110(D) |
| NETWORK SELECTION : | 3 Phase – 4 Wire,3 Phase – 3 Wire, |
| ACCURACY: | Class 0.5 (Standard) |
| TRIP SETTING: | |
| Under Current | 0.00 to CTR |
| Over Current | 0.00 to CTR |
| Under Voltage | 50 to 520V For 3Ø – 3W 30 to 300V For 3Ø – 4W |
| Over Voltage | 50 to 550V For 3Ø – 3W 30 to 330V For 3Ø – 4W |
| Over / Under Frequency | 45.0 to 65.0 Hz |
| Short Circut | 1 – 9 Scale |
| Lock Rotor Point | 0.5 to 9.0 Scale |
| Unbalance | 5 – 60% |
| TIME PARAMETER: | |
| Power On Delay | 0 to 99 Sec |
| Initial Time Delay | 0 to 99 Sec |
| Trip Delay Time(Voltage, Current, Frequency, SSP, Unbalance) | 0 to 999 Sec |
| Scrolling Time | 1 to 99 Sec |
| Reset Time | 0 to 99 Sec |
| OUTPUT SPECIFICATION : | |
| Relay | 1 Nos |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 10Amp, 250V AC |
| AUXILIARY SUPPLY : | |
| Supply Voltage | 100 to 270V AC, 50Hz |
| Power Consuption | 3VA @ 230 AC MAX |
| ENVIRONMENTAL CONDITION: | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | 95 % RH Non-Condensing |
Specification
Overview
| Weight | 1 kg |
|---|---|
| mounting | Panel, DIN rail |
