රු5,700.00
Description

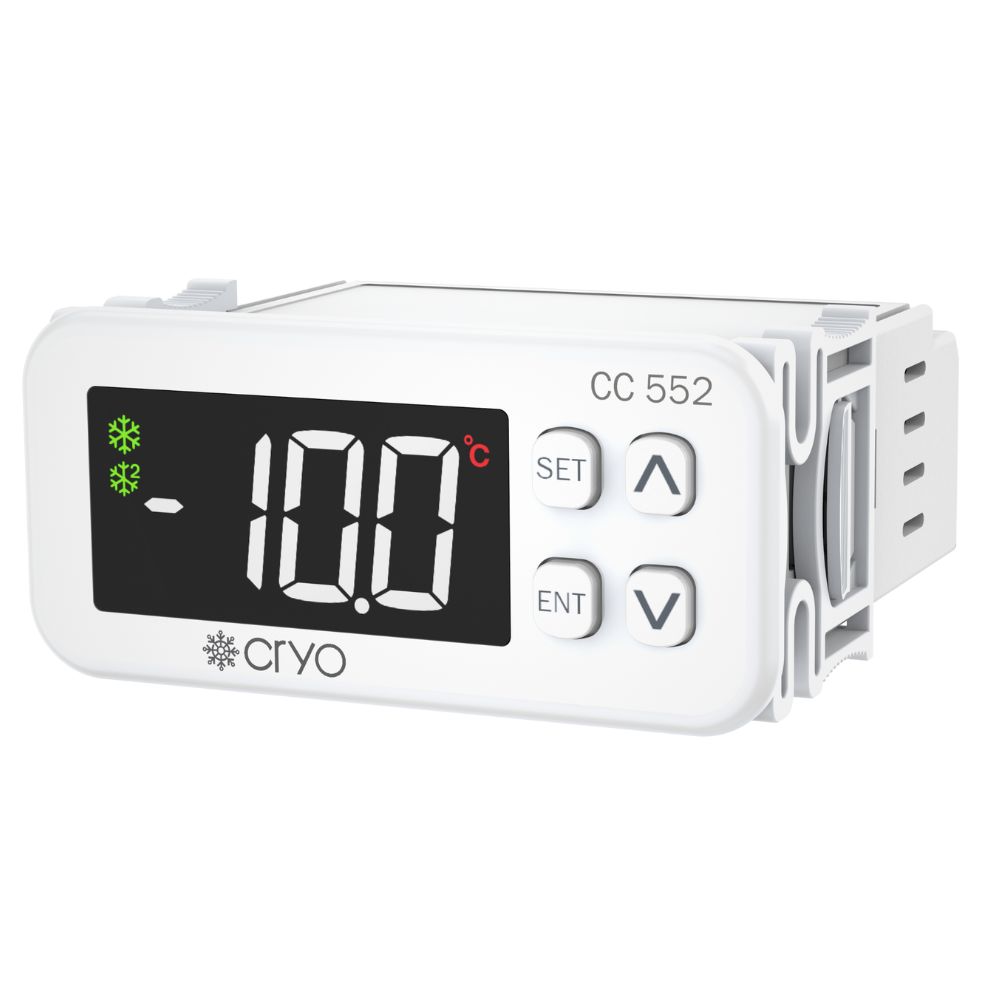

| Model | CC-552 |
| Display | 3 Digit 0.62” 7 Segment RED / WHITE Display |
| Size (mm) | 37 (H) x 78 (W) x 70 (D) mm |
| Panel Cutout | 30(H) X 71(W) mm |
| Input | NTC Thermistor |
| Output | 2 Relay, 1 C/O(NO-C-NC)
1st Relay For Compressor } 10A ( Resistive load ) 2nd Relay For Compressor } 10A ( Resistive load ) |
| Range | -50.0°C To 99.9°C |
| Power Supply | 230V AC,50/60Hz,Approx 3VA |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
Product Variant
| Sr.no | Model Number | Output 1 | Output 2 | Keypad | Display Color | Body color |
| 1 | CC-552-B1-01-W | 10A Relay | 10A Relay | Key | White | White |
| 2 | CC-552-B1-01-W-BL | 10A Relay | 10A Relay | Key | White | Black |
| 3 | CC-552T-B1-01-W | 10A Relay | 10A Relay | Touch | White | White |
| 4 | CC-552T-B1-01-W-BL | 10A Relay | 10A Relay | Touch | White | Black |
Specification
Overview
| Weight | 1 kg |
|---|---|
| Type | Basic, Advanced Digital |
