Din Rail Earth leakage Relay
Price range: රු8,300.00 through රු9,000.00
Motor Protection Relay, CT Selectable
රු13,900.00

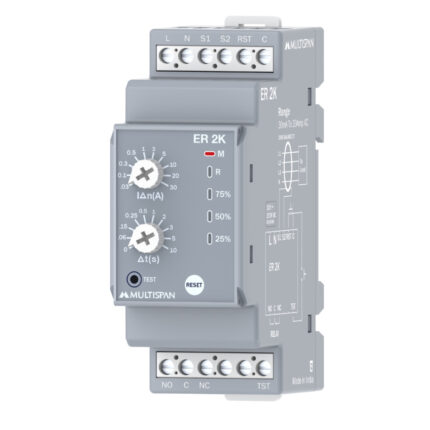

Analog Din Rail Earth Leakage Relay
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු6,900.00
5 in stock
5 in stock
Description
| INPUT SPECIFICATION : | |
| Input Current | 30mA To 30A AC From CBCT |
| Set Currant Range | 0.03A To 30Amp |
| Trip Delay Time | 0 to 10 Second |
| KEYS : | |
| Keys | Test, Rst |
| OUTPUT SPECIFICATION | |
| Relay | 1 Nos. |
| Relay Type | NO – C – NC |
| Rating | 5A,230V AC Resistive Load |
| AUXILIARY SUPPLY : | |
| Supply Voltage | 100 To 270 V AC |
| Power Consumption (VA Rating) | 2VA @ 230 VAC MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0 – 55°C |
| Relative Humidity | 95% RH |
Specification
Overview
| Weight | 1 kg |
|---|
Reviews
There are no reviews yet.
