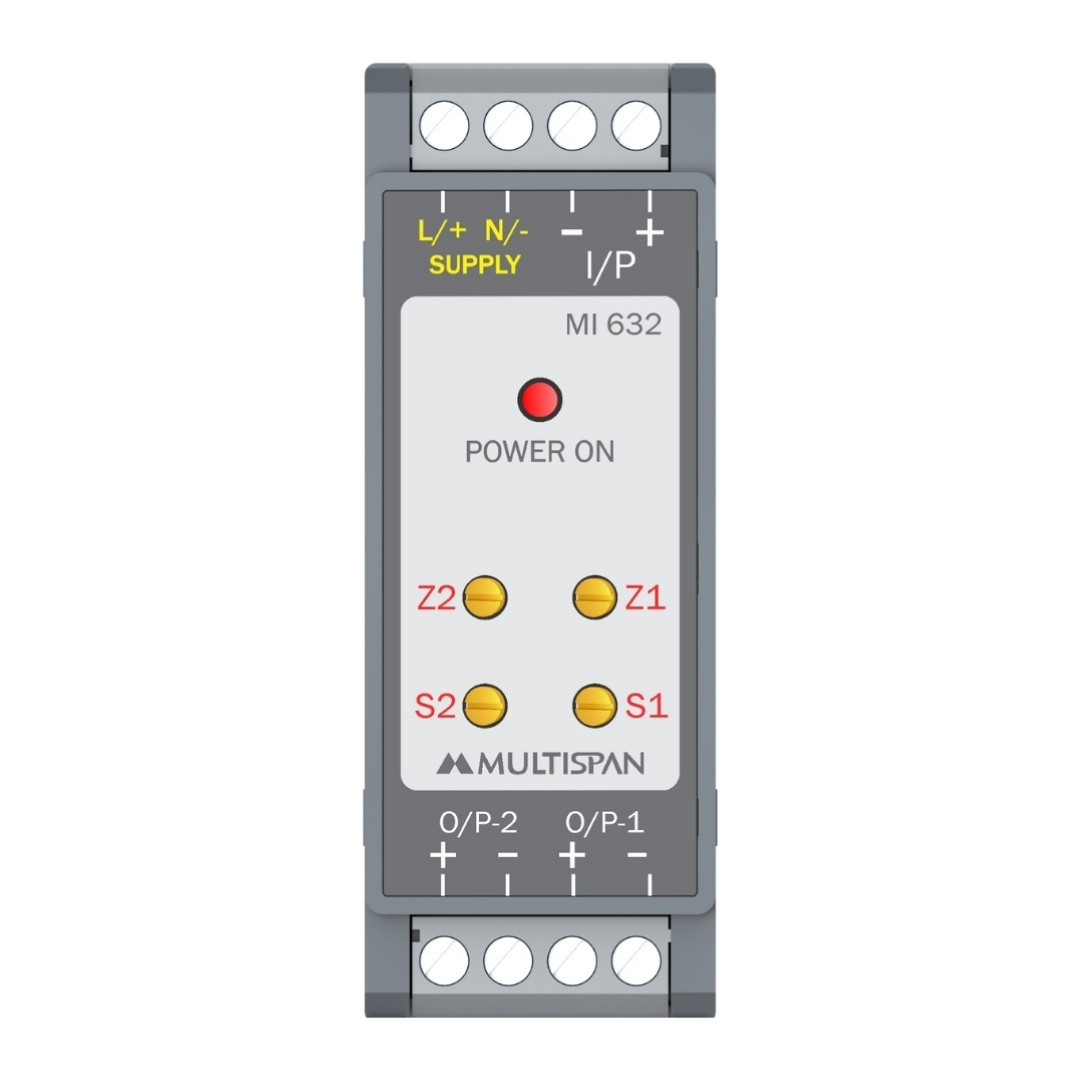

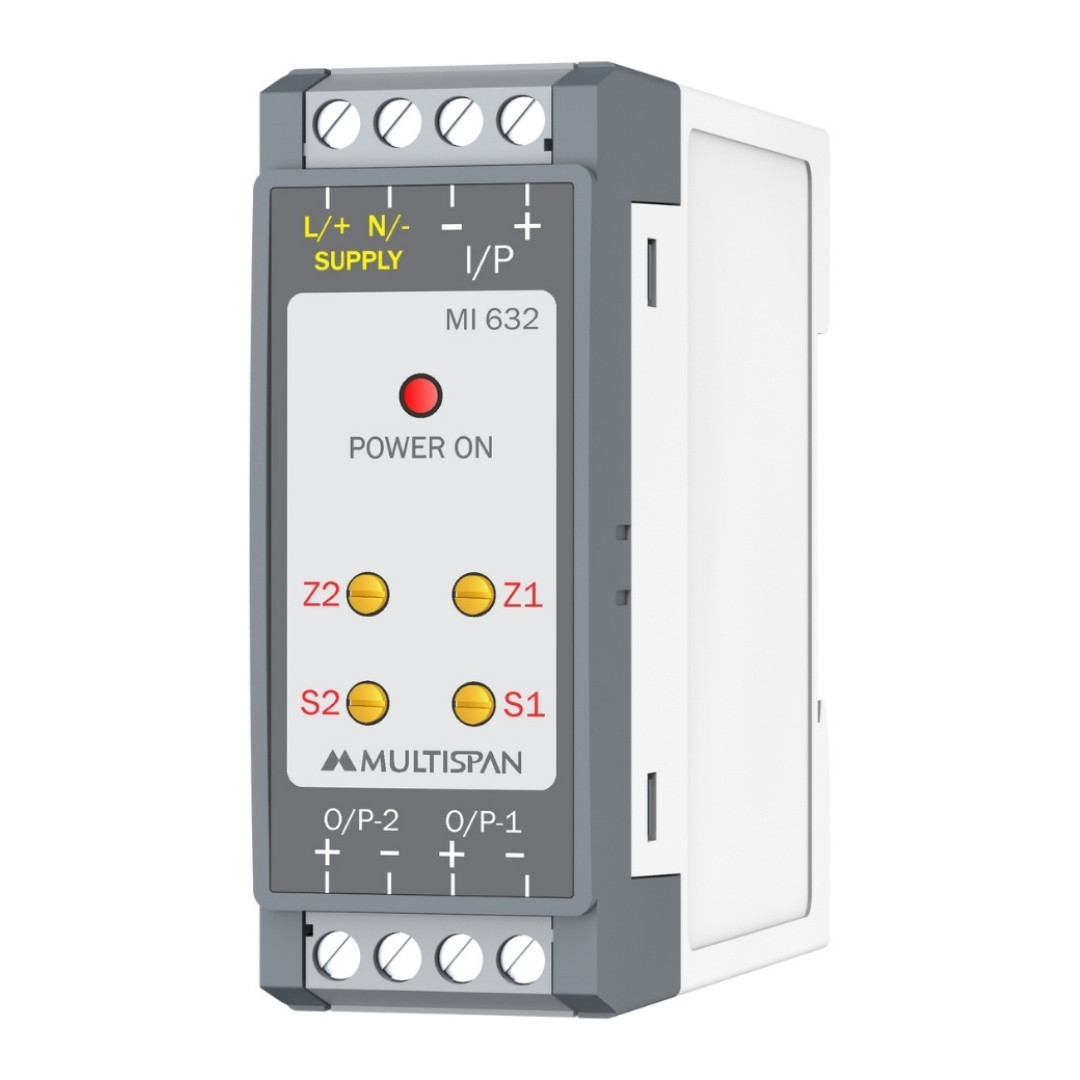

Signal Isolator Dual Channel
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු20,100.00
8 in stock
8 in stock
Description
| INPUT SPECIFICATION | |
| Input | 0-20 mA DC, 4-20 mA DC, 0-10 V DC (Factory Set) |
| Input Inpedance | <100Ω |
| CMRR | >120dp (Typical) |
| Temperature Co-efficient | <100 PPM |
| DIMENSION | |
| Size (mm) | 76 (H) X 28 (W) X 85 (D) |
| OUTPUT SPECIFICATION: | |
| Output 1 & 2 | 0-20 mA DC, 4-20 mA DC, 0-10 V DC (Factory Set) |
| Response Type | <150ms |
| Output Inpedance | <500Ω |
| POWER SUPPLY: | |
| Auxiliary Voltage | 100 to 270V AC,50/60Hz or 24 V DC (Factory Set) |
| Power Consumption ( VA Rating ) | 5VA @230V AC |
| ISOLATION: | |
| Isolation Type | Optical – 3 way |
| Isolation between supply, input & Output |
At least 1.5KV AC for 1 min |
Specification
Overview
| Weight | 1 kg |
|---|
