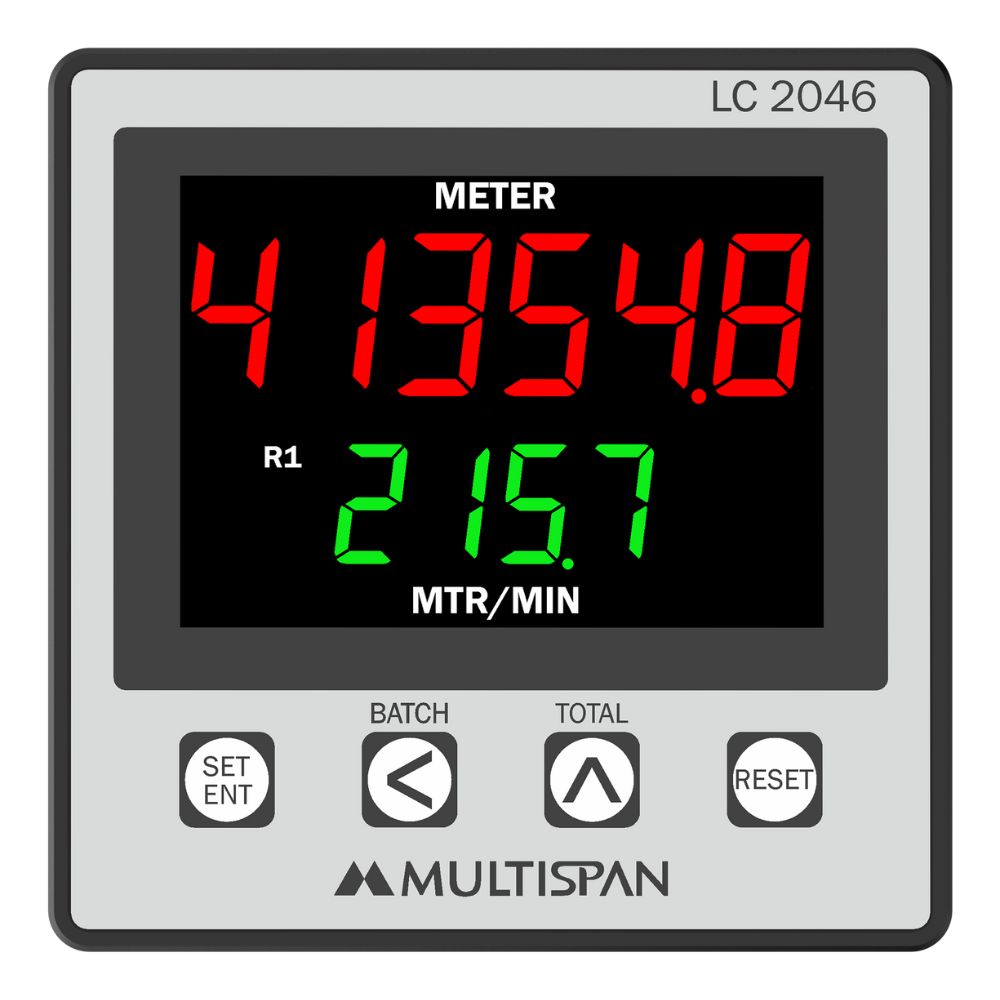

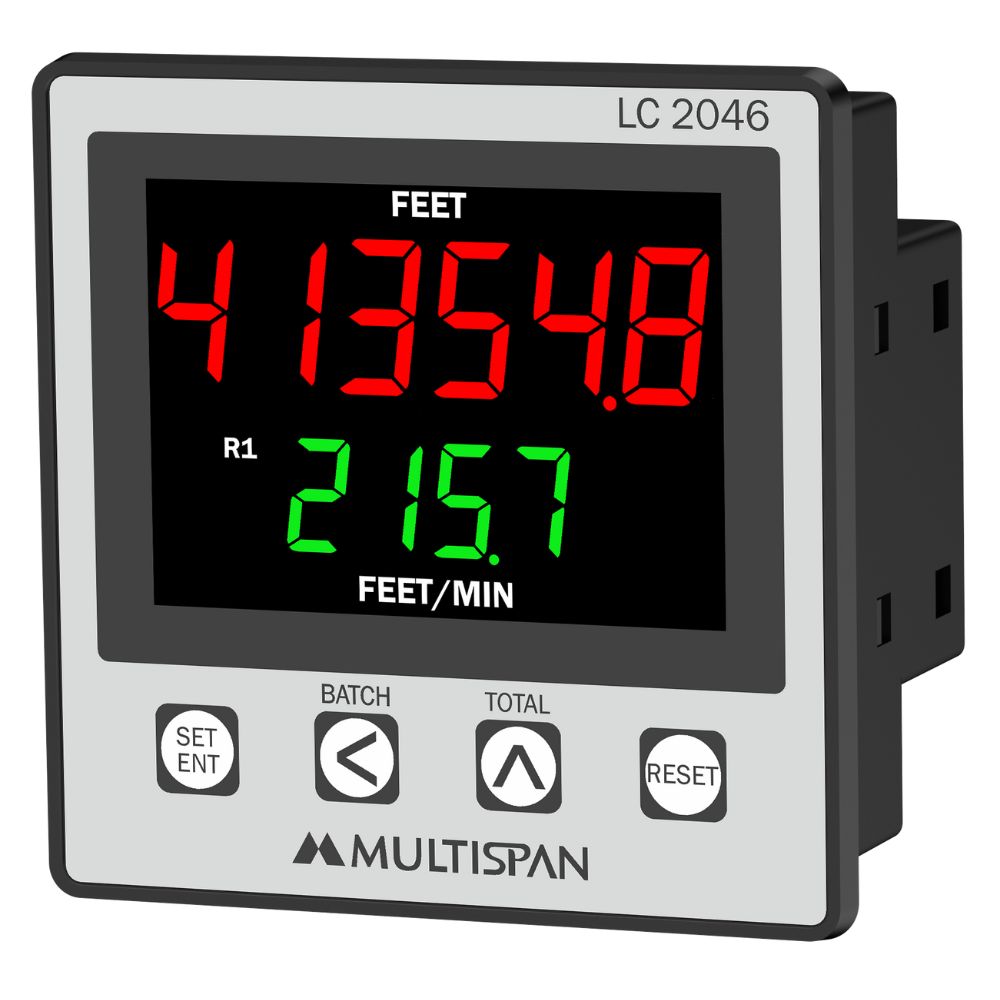

Length Counter
-
Pick up from the ir4electricals Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address - within colombo and gampaha district
2-3 Days
Free
රු9,700.00
4 in stock
4 in stock
Description
| INPUT SPECIFICATION: | |
| Input | NPN/PNP Proximity |
| Micro Switch | |
| DISPLAY AND KEYS | |
| Display | Upper: 6-Digit, 7-Segment, 0.40” Red |
| Lower: 4-Digit, 7-Segment, 0.40” Green | |
| Keys | SET/ENT, SHIFT, INC, RESET |
| DIMENSION: | |
| Size (mm) | 72 (H) x 72 (W) x 45 (D) mm |
| Panel Cutout (mm) | 68 (H) x 68 (W) mm |
| GENERAL SPECIFICATION | |
| Memory | Nonvolatile |
| Counting Direction | UP/ DOWN |
| Reset Option | Front Panel Reset |
| Terminal Reset | |
| OUTPUT SPECIFICATION | |
| Relay Output | |
| Relay | 1 nos. |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 5A, 230V AC |
| AUXILIARY SUPPLY: | |
| Supply Voltage | 100 to 270V AC,50/60Hz |
| Power Consumption (VA RATING) | Approx 4 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION: | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH (non-condensing) |
| Protection Level (AS Per Request) | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
Specification
Overview
| Weight | 1 kg |
|---|
